UAE KYC Security Overview

​

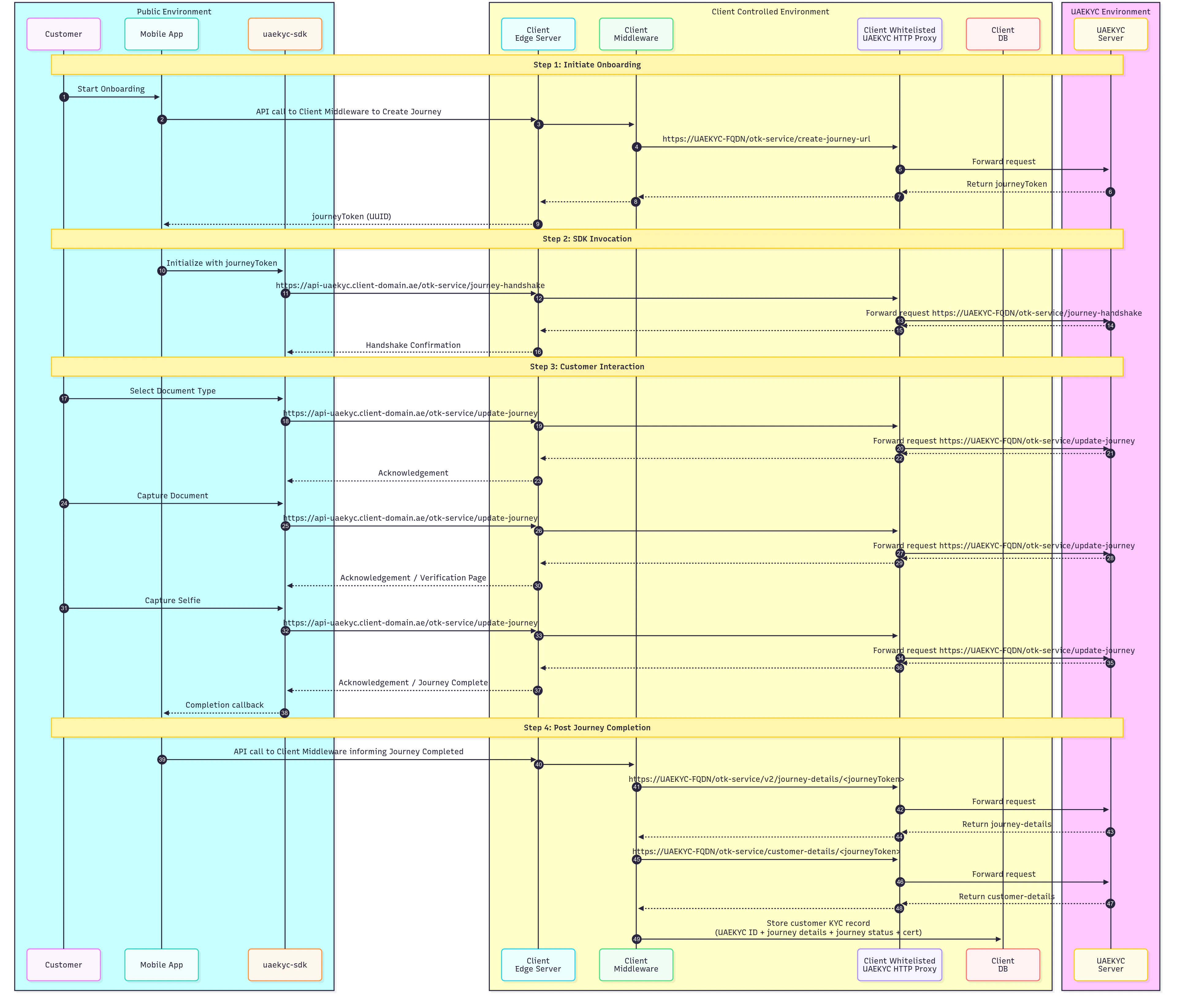

Communication flow

​

Authentication & Audit logs

​

1. Journey Token

• Creation of Journey Token is restricted to client authorized backend system using the x-transaction-key header
• Each journey is uniquely identified by a UUID-based Journey Token.
• This token is used to invoke the SDK and establish a secure session.
• All communication between the SDK and the server is conducted using a hashed version of the token, acting as an authentication key to verify requests and protect against unauthorized access.

​

2. Finite Attempts at Each Journey Step

Document extraction, face capture, and liveness verification steps have a finite number of attempts defined by UAE KYC Team. End-user exceeds the allowed number of attempts, respective journey is automatically terminated to prevent brute-force attempts or excessive retries. Audit Logs: Every step on the SDK is logged, capturing detailed audit logs with timestamps, meta data and user activity allowing traceability and journey replays.

​

3. Short Expiry for Journey Token

SDK cannot be invoked without a Journey Token, each token it valid for 10 mins. If the end-user fails to complete the journey within this time frame, it is marked as abandoned, and further interactions are blocked. This minimizes the risk of token misuse or replay attacks.

​

4. Rate Limit

Each journey enforces granular rate limiting to prevent brute-force attempts, excessive retries, and DoS attacks by restricting requests per step.

​

5. Handshake & Hybrid Encryption

• During Init, SDK and server perform a secure handshake by exchanging public X25519 keys.
• ICP backend system only authenticates onboarding channels that are registered with the system using secure license and package identifiers, such as package name in Android or bundle identifier in iOS.
• Using the Diffie-Hellman key exchange, a shared secret is derived.
• The shared secret is used to generate AES-256-GCM encryption keys, ensuring end-to-end encryption.
• All payloads and responses are encrypted using AES-256-GCM, protecting data integrity and confidentiality.
• MessagePack encoding is applied to enhance performance and resist packet inspection, while ensuring data integrity.

---

​

Data Security & Encryption

​

1. Secure Network Communication

• The SDK uses a native Rust stack for all network calls, minimizing vulnerabilities in third-party libraries.
• All communication is end-to-end encrypted using SSL/TLS.
• TLS v1.3 protocol is the only supported protocol and any attempt to communicate with older protocols are actively rejected.
• A second layer of encryption is implemented using hybrid encryption (ECDH + Ed25519).
• No plain text communication is allowed; all data is transmitted in binary format.
• HTTP traffic is completely disallowed.
• The SDK only supports the following cipher suites for secure communication:
  • AES_256_GCM_SHA384
  • AES_128_GCM_SHA256
  • CHACHA20_POLY1305_SHA256

​

2. Memory and Build Security

• String Obfuscation: Strings within the SDK are obfuscated to resist reverse engineering.
• Non-reproducible Builds: Every build is unique, preventing attackers from creating predictable attack vectors.
• Secure Object Storage:
  • Sensitive objects (e.g., encryption keys, hashes) are stored securely with mlock protection.
  • Memory containing sensitive data is zeroized upon deallocation to prevent residual data leaks.

​

3. Image Security

• Images (both document and face images) are obfuscated at the pixel level using a secure PRNG.

​

4. Platform-Specific Security Measures

​

Android-Specific Security

• Secure Screens:
  • All screens containing sensitive data are protected using FLAG_SECURE, preventing screenshots and screen recording.
• Overlay Security:
  • The SDK actively hides overlays.
  • If any overlay is detected, touch inputs are blocked to prevent tapjacking attacks. """

Checkout Create Journey API and Android Integration for better understanding.
